Setting up the Fuji Flow Meter

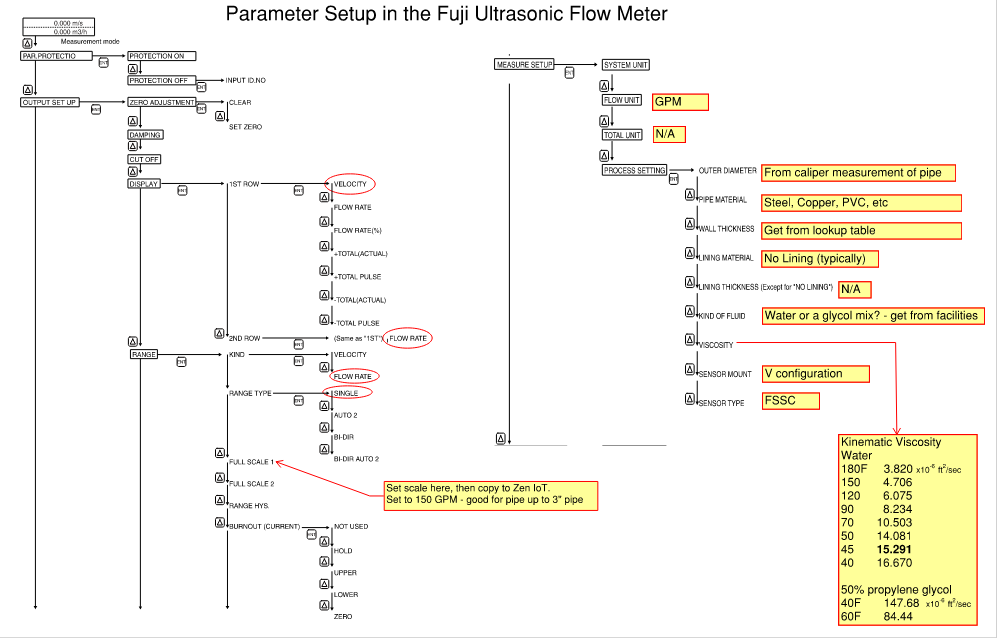

The Fuji Flow Meter bust be setup custom for every use. Important parameters to setup:

Flow Range
Pipe Material
Pipe Outside Diameter (OD)
Pipe Wall Thickness
Fluid type

Flow range is the maximum flow you expect to see and is the flow rate at which the meter sends the maximum signal (20 mA) to the data logger. It's part of the Output Setup menu. You must also setup the range in the Zen IoT Data Logger - the numbers have to match!

Other parameters are in the Measure Setup menu.

Here's a brief video about setting up the flow meter:Fuji Flow Meter Setup.mp4

For more information, see the full manual and other files here: https://files.mazzetti.com/navigate/folder/3fe6e262-a169-4e72-af8d-8ff7fded551
