Extrusion Testing


  1. Before running an Extrusion Test, verify you are using the correct Nozzle Temperature for the Material type you are using.

  2. Preheat the Nozzle for the Material you are using.

  3. Mark 100mm of filament from the entrance of the Extruder.

  4. Mark 10mm of filament from the first mark.

  5. Use the LCD Panel to Extrude 100mm of filament.

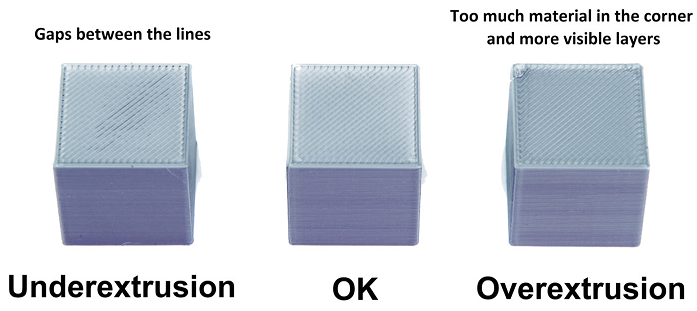

  6. Measure the distance from the entrance of the Extruder to the first mark, that is the amount of Under Extrusion.

  7. If you cannot see the first mark, measure the distance from the entrance of the Extruder to the second mark, and subtract that from 10mm, that is the amount of Over Extrusion.

If you are Over or Under Extruding see E-Step Adjustment.
If you are Extruding correctly do a Flow Adjustment.
