V-Slot Rails

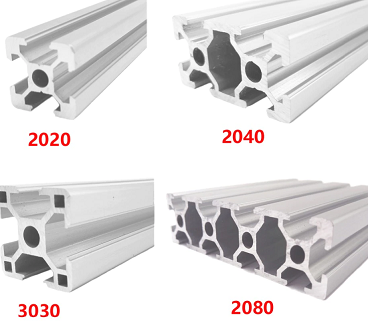

V-Slotted Rails are named based on their side in millimeters. For example a 2020 Rail is 20mm high, and 20mm wide.

These rails are some times called X Rails but shouldn't be confused with the X movement of printers, they also shouldn't be confused with V-Rails.

Many 3D Printer Gantries are made from V-Slotted Rails.

V-Slotted Rail Router Bit Specs.pdf

Supporting Documentation

Videos:



Articles:
